Model: 010-01870-00

• Includes dual-beam transducer with Garmin CHIRP traditional sonar for crystal-clear images and remarkable target separation
• Built-in Garmin Quickdraw™ Contours mapping software lets you create and store maps with 1’ contours for up to 2 million acres
• Built-in GPS lets you mark waypoints, create routes and view boat’s speed
• Bright, sunlight-readable 4.3 display and intuitive user interface
• Rugged design for every fishing environment

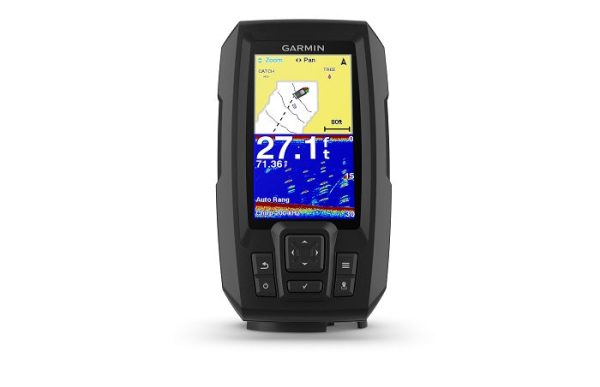

• The STRIKER Plus 4 fishfinder with a bright 4.3 display and built-in GPS features CHIRP sonar for crystal-clear images and Quickdraw Contours map drawing software, which stores up to 2 million acres of content with 1’ contours. The built-in GPS lets you mark and navigate to waypoints and shows your boat’s speed.

  Nobody knows the waters you fish better than you and your fellow fishermen. While you are trolling the shorelines and the depths, Quickdraw Contours mapping software creates HD fishing maps of the places you’ve been. No special knowledge is required. STRIKER Plus 4 can now store up to 2 million acres of your Quickdraw Contours maps with 1’ contours.

  The STRIKER Plus 4 fishfinder includes Garmin CHIRP technology for a higher level of clarity and detail that you have come to expect from Garmin. Crystal-clear sonar images provide remarkable target separation and resolution in shallow and deeper water. Bottom contours are more visible, even at higher speeds, and signal noise can be suppressed at greater depths for a timely interpretation of what’s below.

  The built-in, high-sensitivity GPS finds and maintains your position anywhere you go on the water. The GPS allows you to mark waypoints for different locations. So, if the fish are biting in 1 spot, you can mark it, and return to it on your next trip. Mark docks, boat ramps and other locations on the lake, and create routes back to them for your next trip.

  GPS also allows STRIKER Plus 4 to show your speed on screen, so you can be sure you’re trolling at the right speed for the lure you’re using or in wake-controlled areas.

  The STRIKER Plus 4 fishfinder makes fishing a breeze, and it’s built to work in any environment. The bright, sunlight-readable display gives you a clear view of what is below your boat, even on the brightest days. And the larger screen gives you a better view of what is happening below the boat. The intuitive user interface makes it simple to navigate to whatever feature you need, so you are ready for anything on the water.

  Specifications

  Physical dimensions		3.9 x 6.9 x 1.8 (9.8 x 17.4 x 4.5 cm)
  Display resolution		272 X 480 pixels
  Display type		QSVGA
  Weight		0.7 lbs (0.3 kg)
  Water rating		IPX7
  Dual-frequency (50 200 kHz) sonar capable		Yes
  Dual-beam (77 200 kHz) sonar capable		Yes
  Frequencies supported		Traditional: 50 77 83 200 kHz
  Transmit power		200 W (RMS)
  Bottom lock (shows return from the bottom up)		Yes
  Water temperature log and graph		Yes
  Split-screen zoom		Yes
  Ultrascroll® (displays fish targets at higher boat speeds)		Yes
  Fish Symbol ID (helps identify fish targets)		Yes
  AutoGain Technology (minimizes clutter, maximizes targets)		Yes
  Adjustable depth line (measures depth of underwater objects)		Yes
  A-scope (real time display of fish passing through transducer beam)		Yes
  Water temperature sensor included		Yes

  What s in the Box:
  • STRIKER Plus 4 fishfinder
  • Garmin dual beam transducer with 20 cable
  • Power data cable
  • Tilt swivel mount
  • Hardware
  • Documentation

  • Additional information
